![Theremin Replica Volume Side](images/Theremin_Replica_Volume_Side_Mike_Buffington.jpg)
2005-2007 A working replica of an RCA Theremin. Electrically identical to the original instruments and housed in a handmade mahogany cabinet finished with a French polish.
![Theremin Replica Pitch Side](images/Theremin_Replica_Pitch_Side_Mike_Buffington.jpg)
![Theremin Replica Back](images/Theremin_Replica_Back_Mike_Buffington.jpg)
Construction and process images
![replica theremin chassis](images/Theremin_Replica_Construction_01_Mike_Buffington.jpg)
I first built the cabinet from photos and rough drawings I found on the internet
![replica theremin chassis, view from behind](images/Theremin_Replica_Construction_02_Mike_Buffington.jpg)
I decided to let my replica have removable legs
![Radiola 60 radio](images/Theremin_Replica_Construction_03_Mike_Buffington.jpg)
I used an RCA Radiola 60 radio for the base of the replica circuit
![Radiola 60 radio behing dismantled](images/Theremin_Replica_Construction_04_Mike_Buffington.jpg)
Gutting the radio and salvaging parts
![Wiring up the chassis](images/Theremin_Replica_Construction_05_Mike_Buffington.jpg)
Wiring up the chassis
![Hand-wound oscillator coils](images/Theremin_Replica_Construction_06_Mike_Buffington.jpg)
Hand-wound oscillator coils
![Lacing the cable](images/Theremin_Replica_Construction_07_Mike_Buffington.jpg)
Lacing the cable in the style of the original
![Fabricating the antenna](images/Theremin_Replica_Construction_08_Mike_Buffington.jpg)
Fabricating the antenna
![a handfull of volume loops](images/Theremin_Replica_Construction_09_Mike_Buffington.jpg)
Making some extra volume loops
![the replica powere dup](images/Theremin_Replica_Construction_10_Mike_Buffington.jpg)
Powered up for the first time
![replica theremin chassis, view from above](images/Theremin_Replica_Construction_11_Mike_Buffington.jpg)
Pre-finish, but working

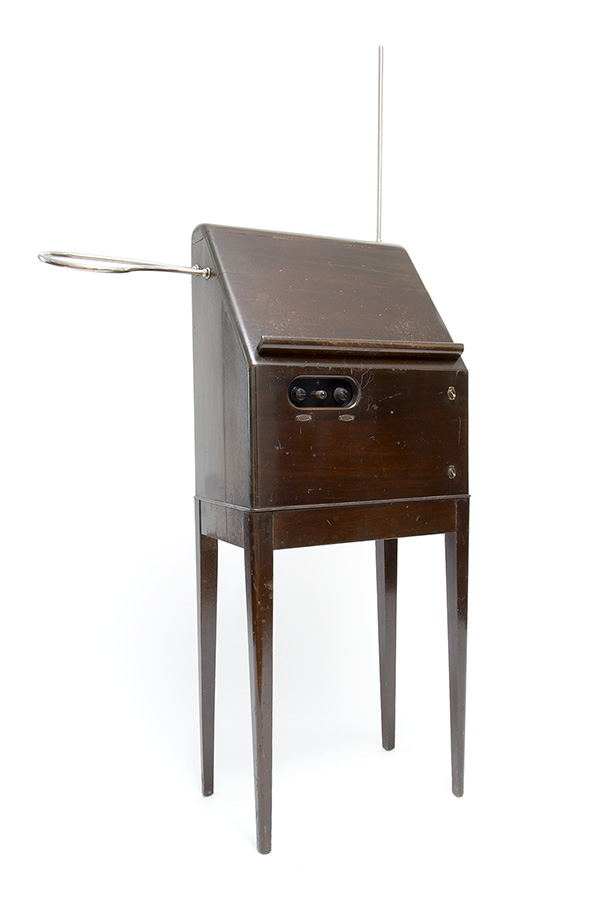

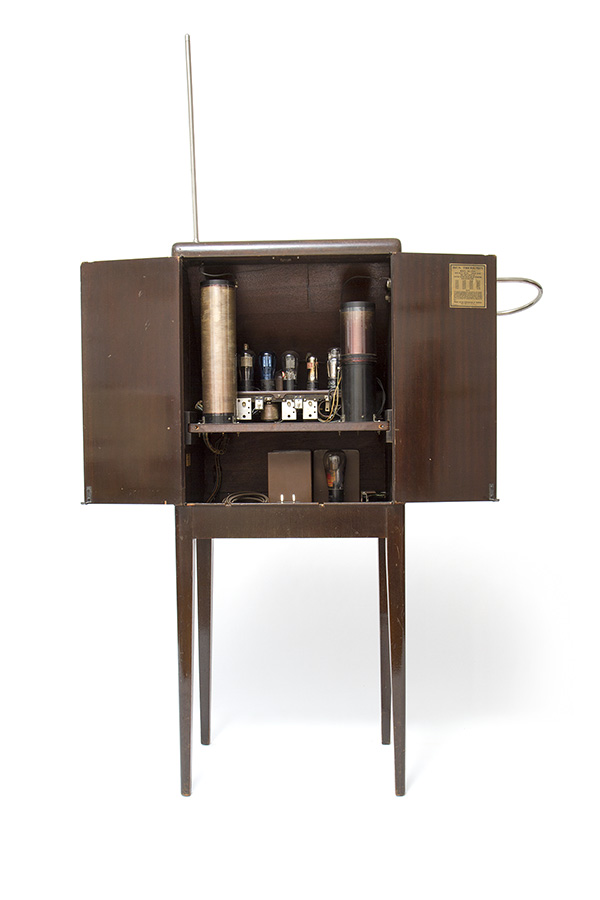

Original RCA Theremin, serial number 100043
For comparison
![Theremin Original serial number 100034 Volume Side](images/Theremin_Original_sn100034_Volume_Side_Mike_Buffington.jpg)
![Theremin Original serial number 100034 back](images/Theremin_Original_sn100034_Back_Mike_Buffington.jpg)
