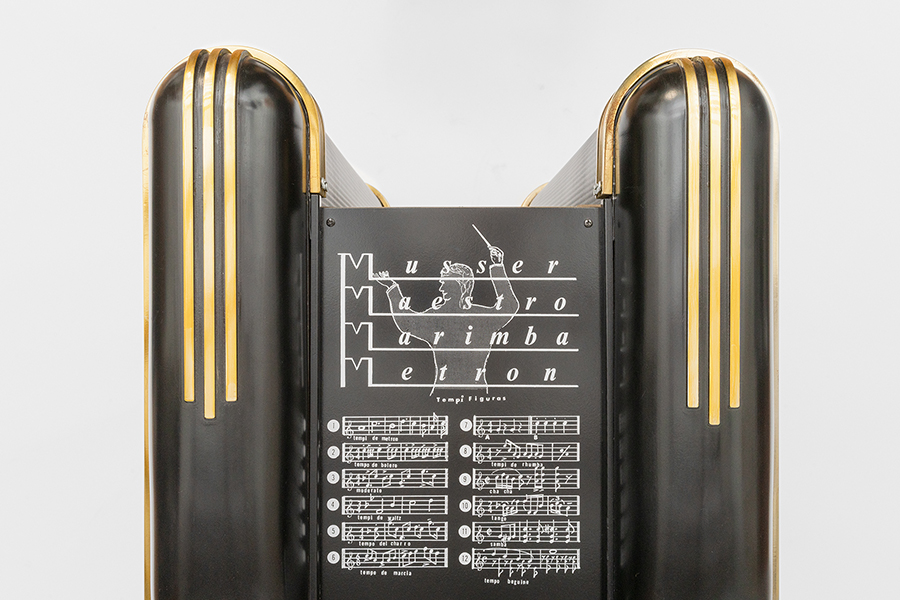

![Metron replica detail view from above](images/Metron_Replica_Top_Mike_Buffington.jpg)
2016-2018 A working replica of percussionist Clair Omar Musser’s Musser Maestro Marimba Matron; a modified Wurlitzer Sideman electromechanical drum machine housed in a custom cabinet which followed the style of Musser’s percussion instruments. This replica contains a similarly modified Sideman, housed in a replica cabinet.
Commissioned by Wally De Backer (Gotye). Completed replica photography by Sam Valle.

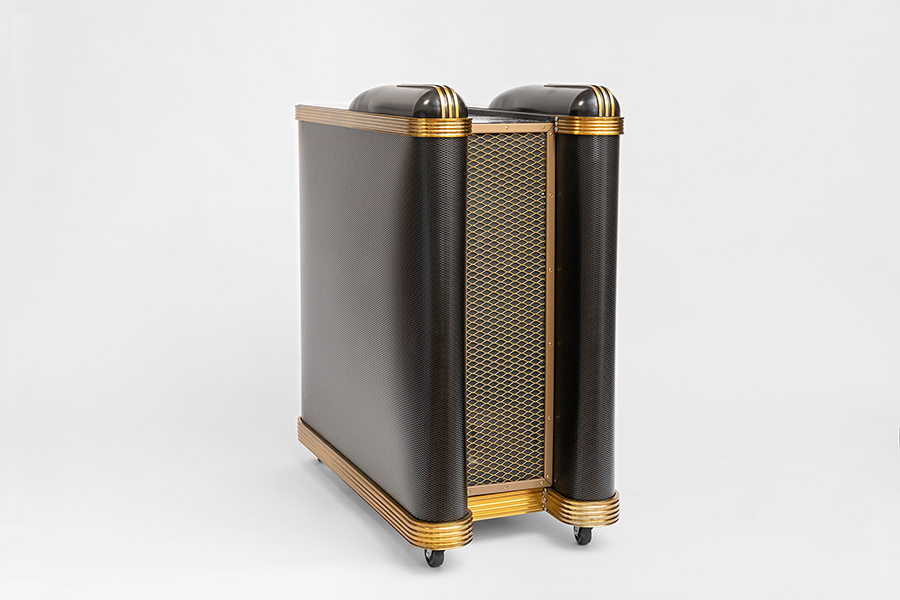

![Metron replica three quarters view](images/Metron_Replica_Angle_Mike_Buffington.jpg)

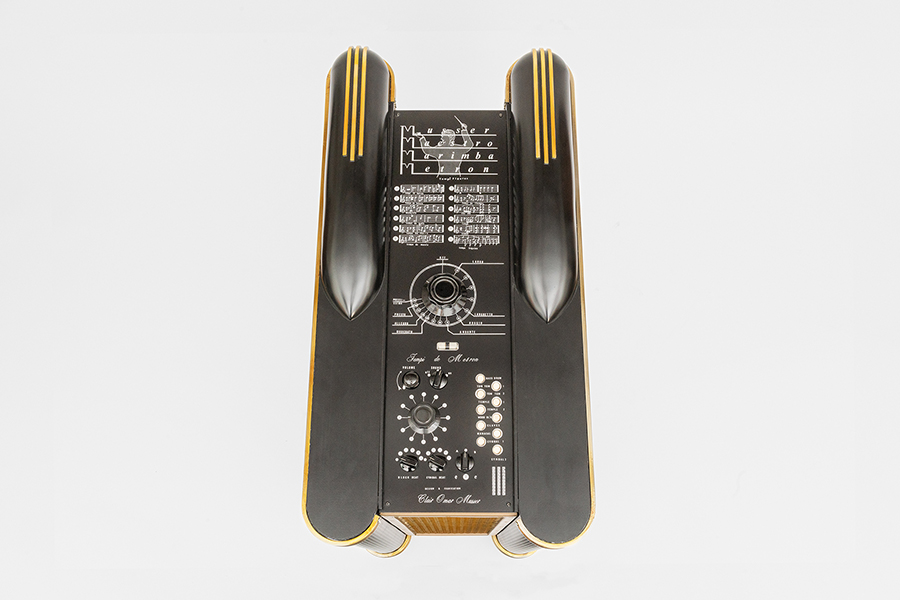

![Metron replica view from above](images/Metron_Replica_Birds-Eye_Mike_Buffington.jpg)

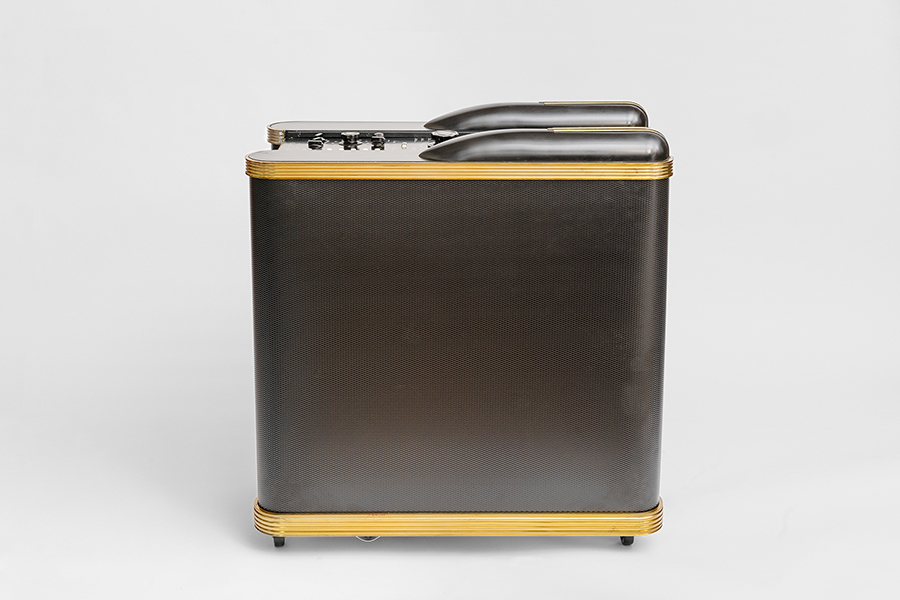

![Metron replica side view](images/Metron_Replica_Side_Mike_Buffington.jpg)

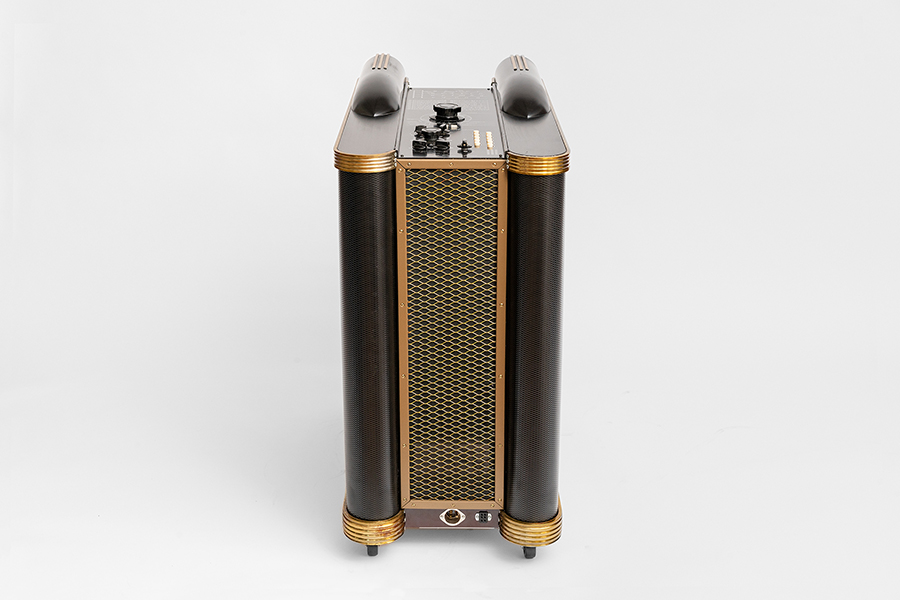

![Metron replica back view](images/Metron_Replica_Back_Mike_Buffington.jpg)
Construction and process images

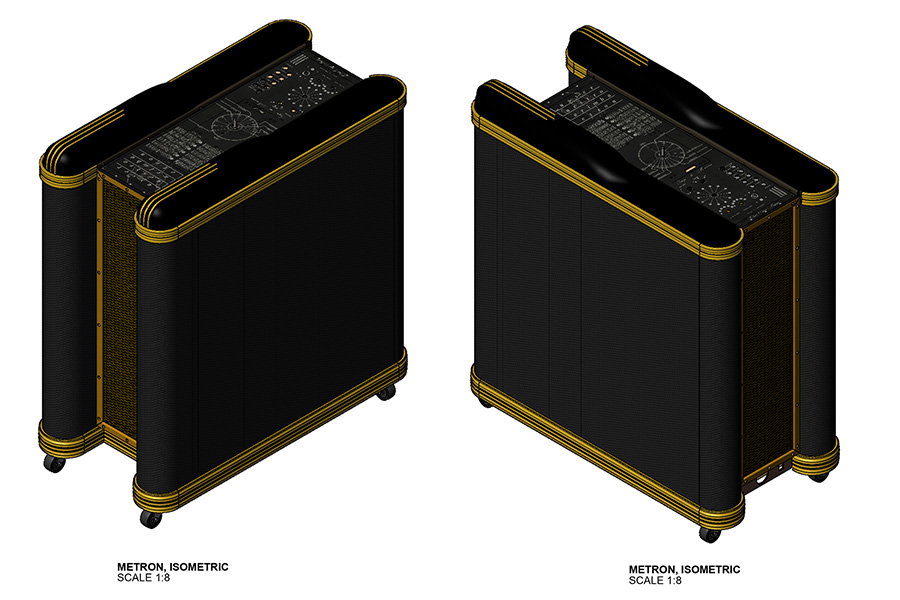

![Metron CAD view](images/Metron_Replica_CAD_Mike_Buffington.jpg)
SolidWorks model

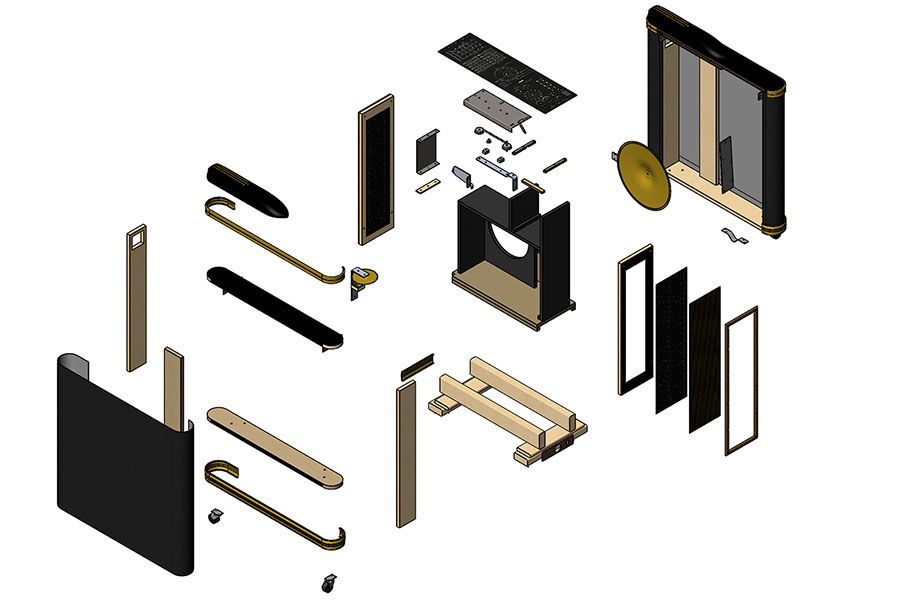

![Metron exploded CAD view](images/Metron_Replica_CAD_Exploded_Mike_Buffington.jpg)
Exploded view of model
![Chevron profile measurments](images/Metron_Replica_Chevron_Profiles_1_Mike_Buffington.jpg)

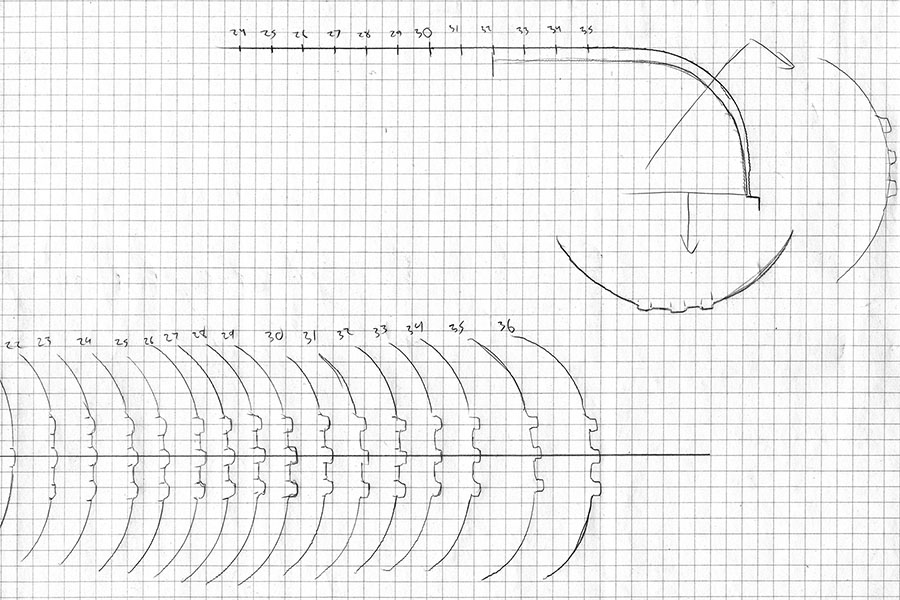

![Chevron profile measurments](images/Metron_Replica_Chevron_Profiles_2_Mike_Buffington.jpg)
"Chevron" profiles measured every half inch with profile gauge

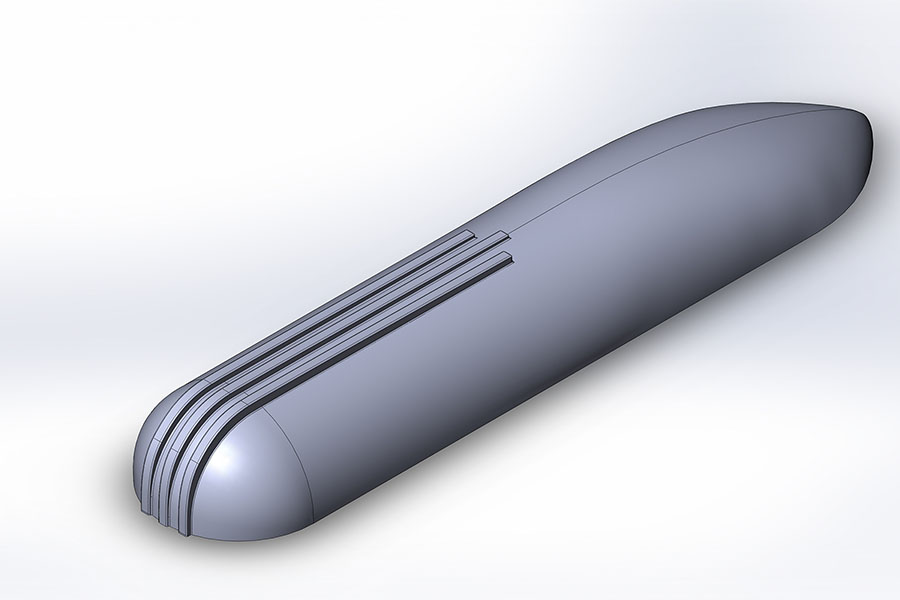

![Chevron CAD mdel](images/Metron_Replica_Chevron_CAD_Mike_Buffington.jpg)
SolidWorks model of the "chevron" from gathered data

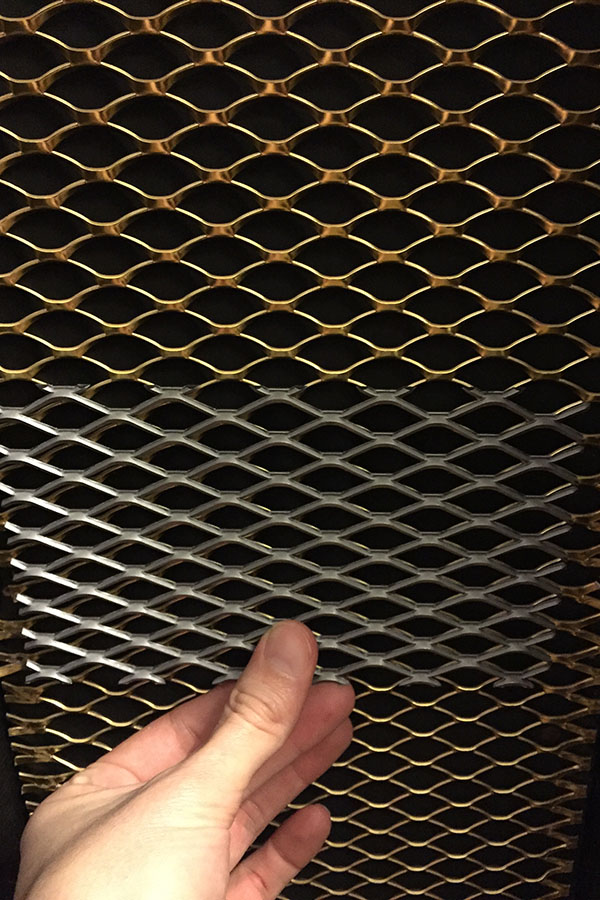

![Matching the expanded metal grille](images/Metron_Replica_Matching_Grille_Mike_Buffington.jpg)
Matching the expanded metal grille
![Matching the textured sheet metal enclosure](images/Metron_Replica_Matching_Sheet_Metal_Mike_Buffington.jpg)

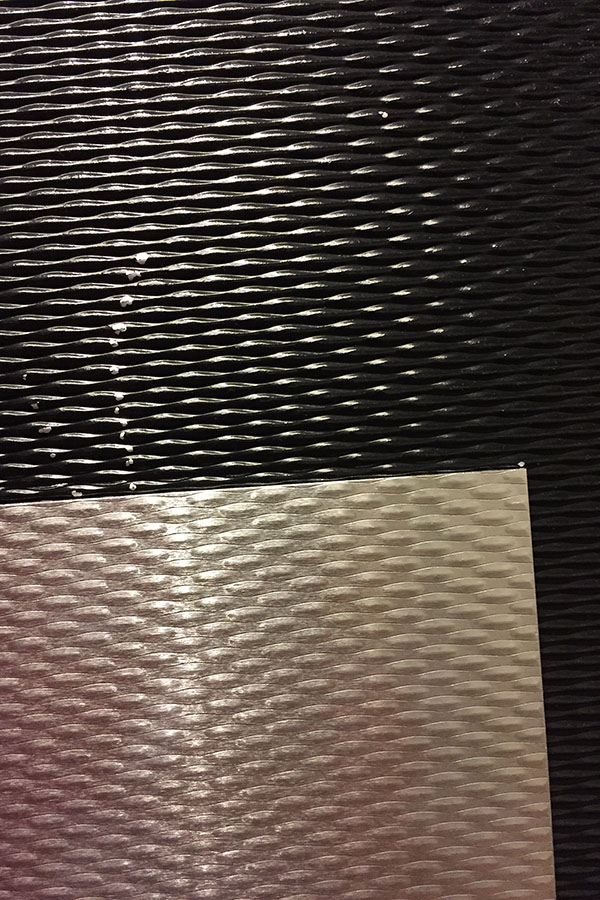

Matching the textured sheet metal enclosure
![Modified Sideman with in-progress enclosure](images/Metron_Replica_Insides_Mike_Buffington.jpg)

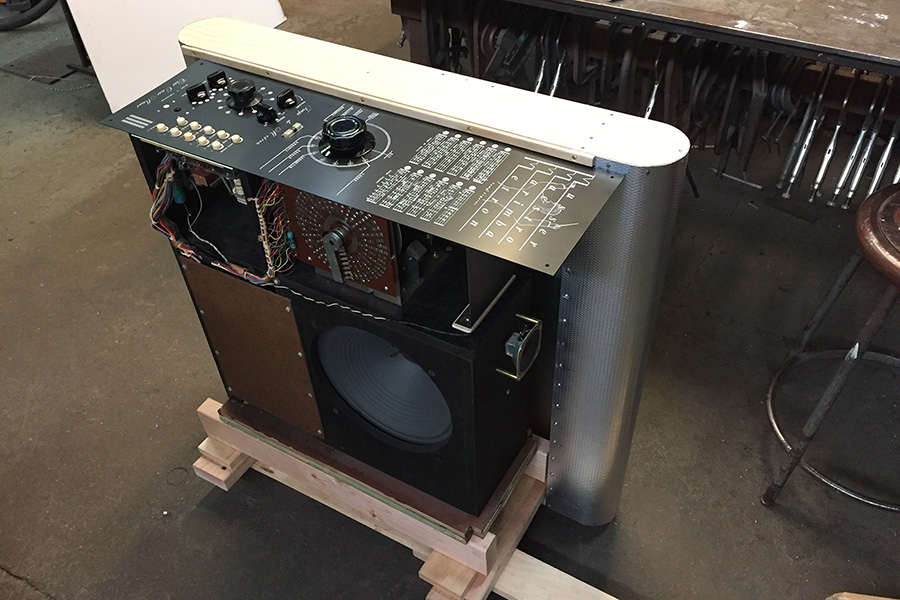

Modified Sideman with in-progress enclosure

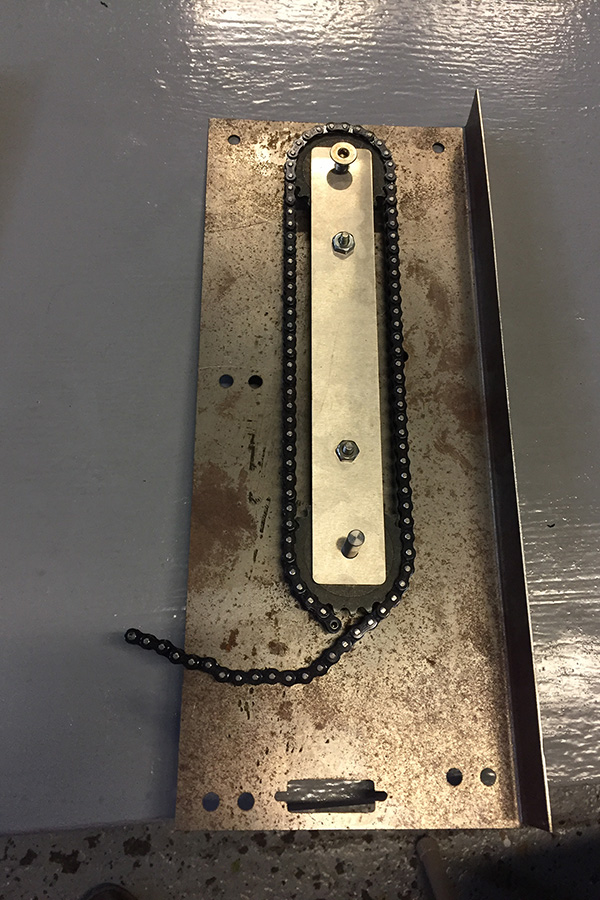

![Replica of modification to convert linear to rotational tempo control](images/Metron_Replica_Gears_Mike_Buffington.jpg)
Replica of modification to convert linear to rotational tempo control
![Wooden frame construction](images/Metron_Replica_Frame_Mike_Buffington.jpg)

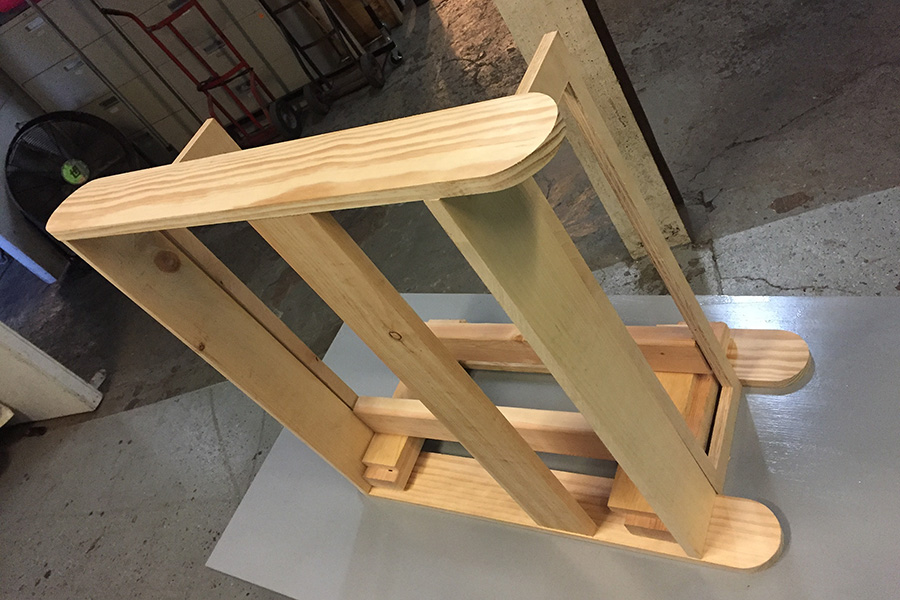

Wooden frame construction

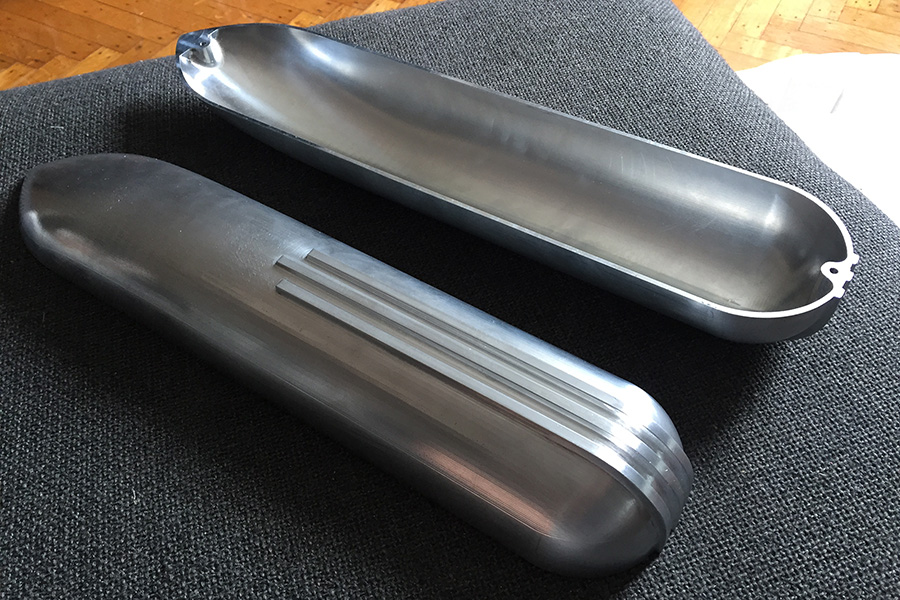

![CNC milled aluminum chevrons](images/Metron_Replica_Chevrons_Mike_Buffington.jpg)
CNC milled aluminum "chevrons" to match original cast parts
![Cymbal](images/Metron_Replica_Cymbal_Mike_Buffington.jpg)

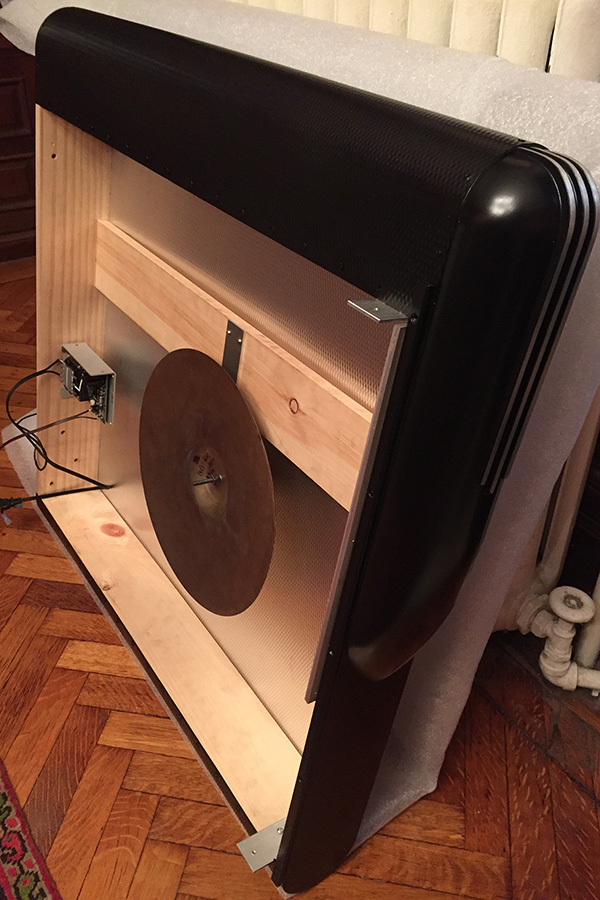

Mounted cymbal triggered by an alarm bell, as in the original

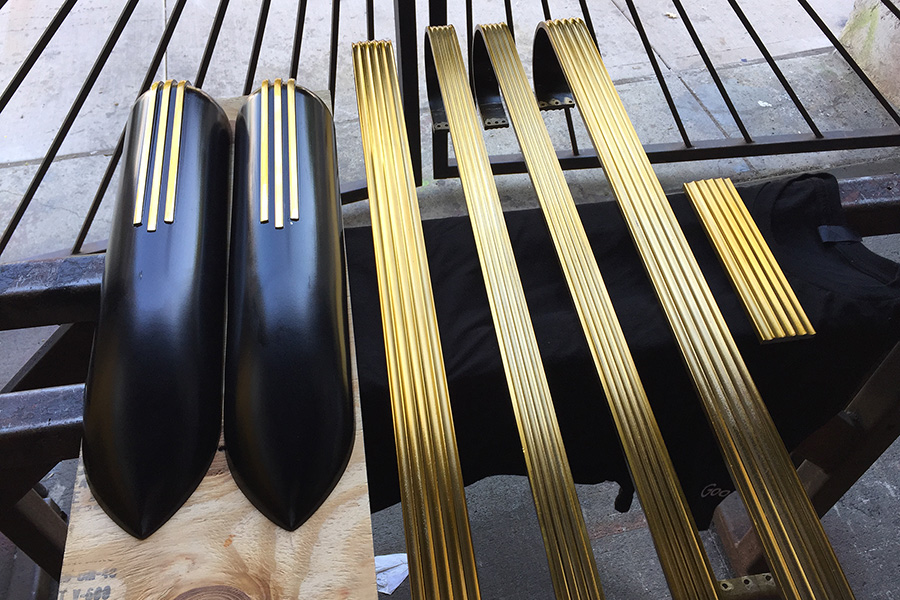

![Gold lacquer tinting](images/Metron_Replica_Painting_Mike_Buffington.jpg)
Gold lacquer tinting
The original Musser Maestro Marimba Metron
Photography by Will Joines.

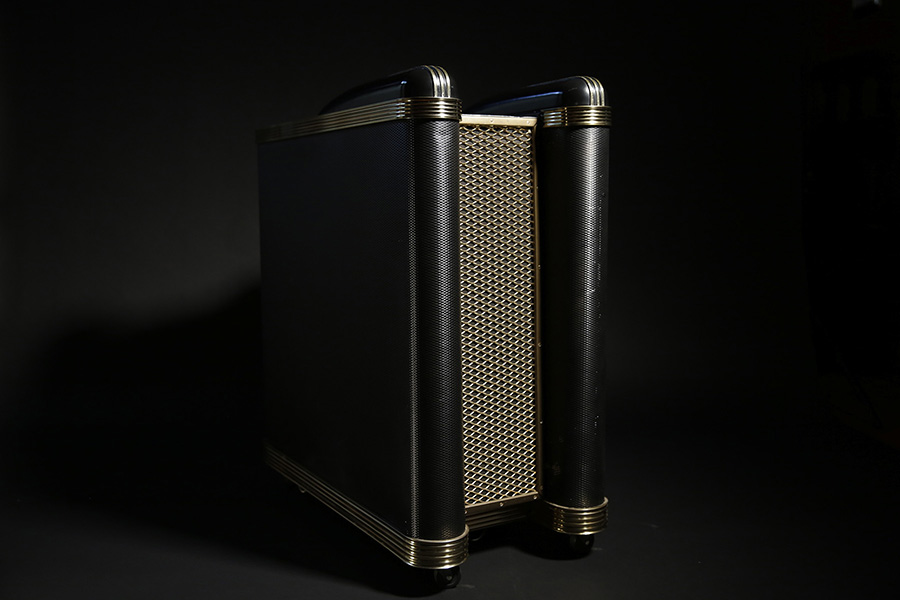

![Orignal Metron, three quarters view eye level](images/Metron_Original_Will_Joines_photo_Mike_Buffington_05.jpg)

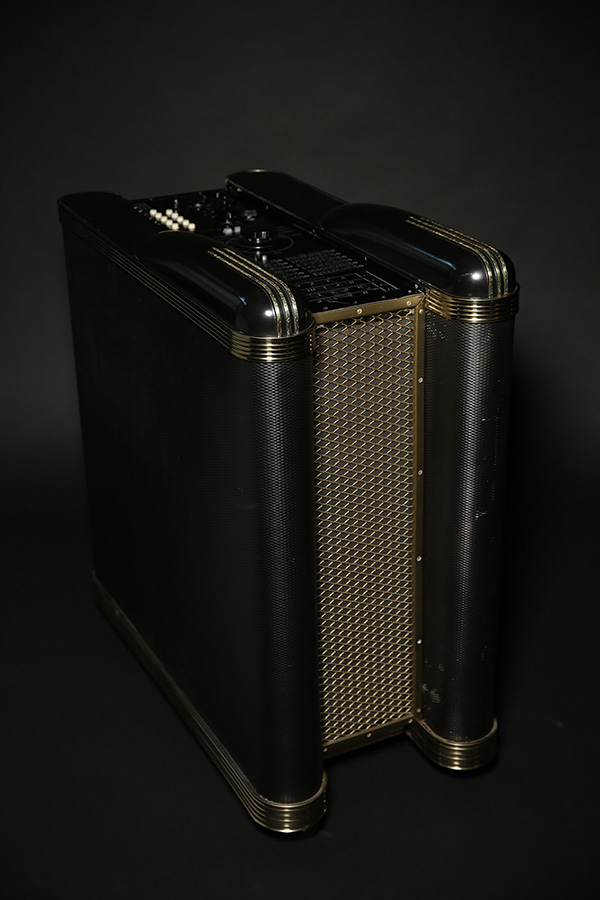

![Orignal Metron, three quarters view above](images/Metron_Original_Will_Joines_photo_Mike_Buffington_06.jpg)

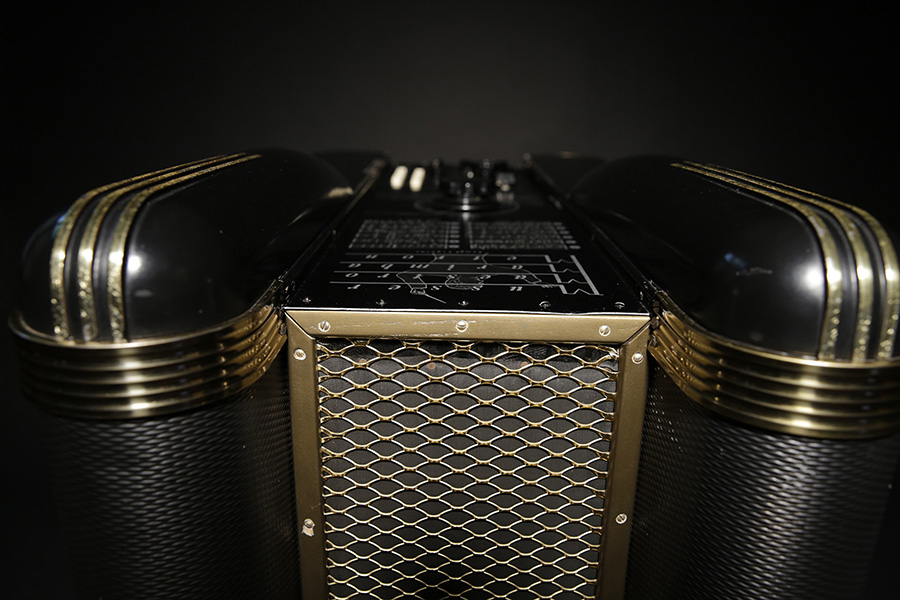

![Orignal Metron, front view](images/Metron_Original_Will_Joines_photo_Mike_Buffington_07.jpg)

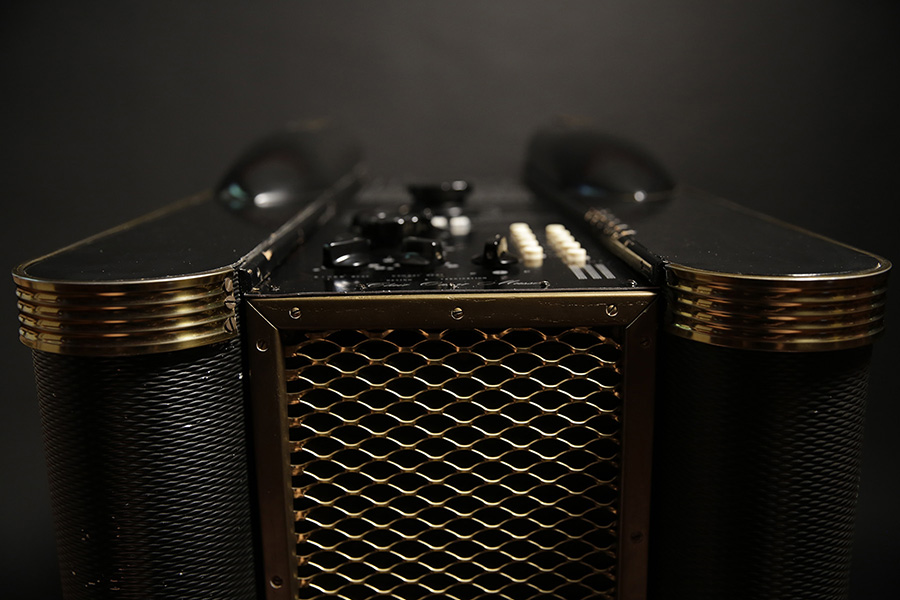

![Orignal Metron, back view](images/Metron_Original_Will_Joines_photo_Mike_Buffington_02.jpg)

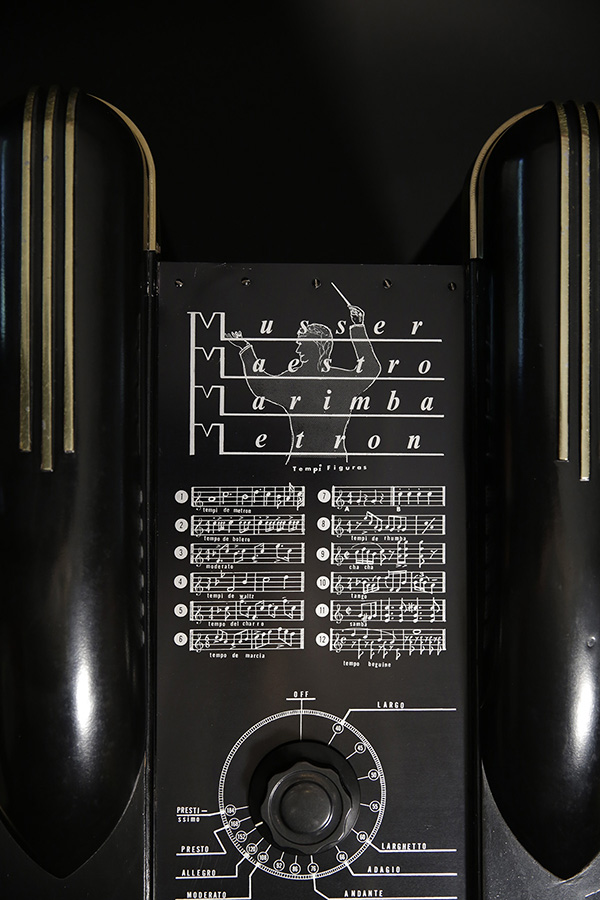

![Orignal Metron, Top front view](images/Metron_Original_Will_Joines_photo_Mike_Buffington_04.jpg)
![Orignal Metron, Detail of the faceplate](images/Metron_Original_Will_Joines_photo_Mike_Buffington_03.jpg)
Detail of the faceplate

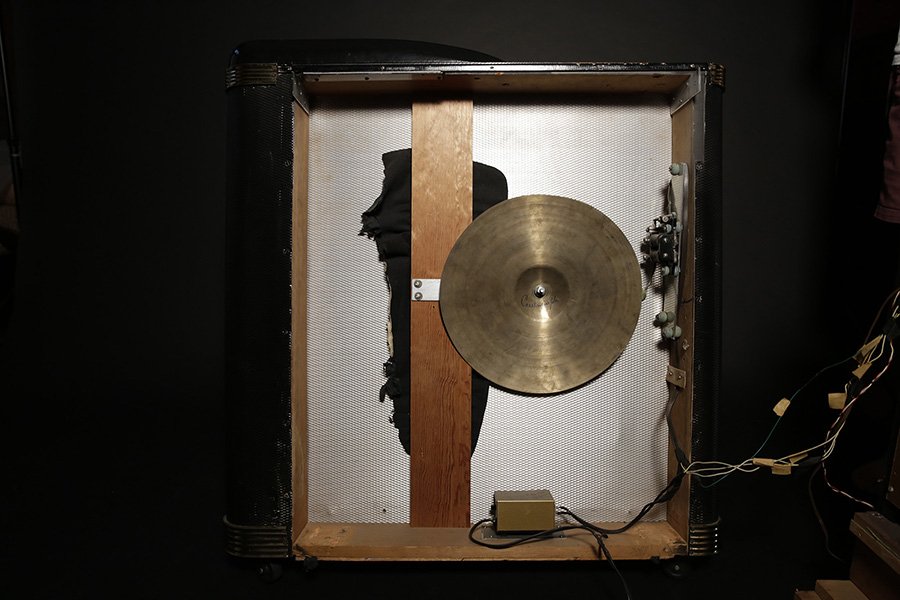

![Orignal Metron's cymbal with alarm bell and power supply](images/Metron_Original_Will_Joines_photo_Mike_Buffington_08.jpg)
Original cymbal with alarm bell and power supply

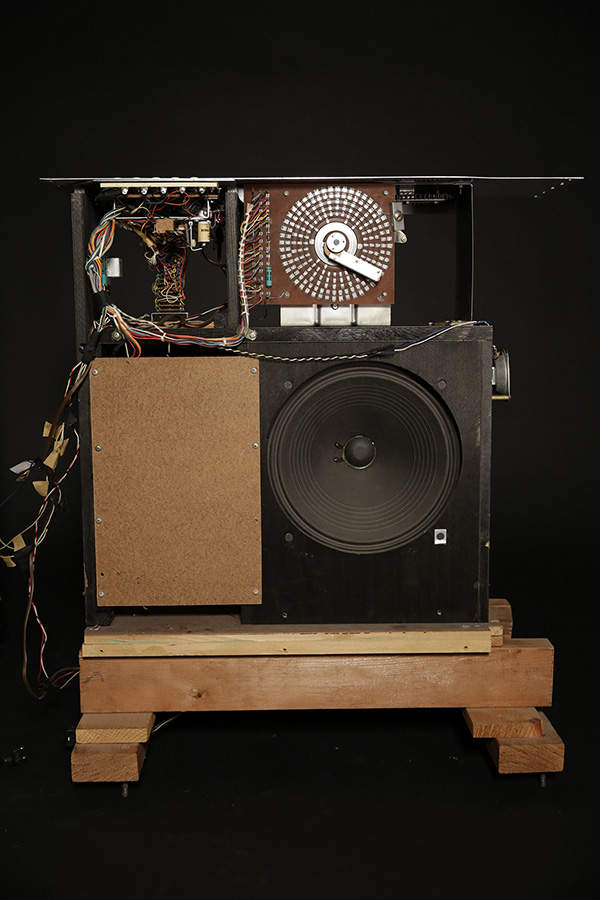

![Orignal Metron's modified Wurlitzer Sideman](images/Metron_Original_Will_Joines_photo_Mike_Buffington_01.jpg)
Modified Wurlitzer Sideman
